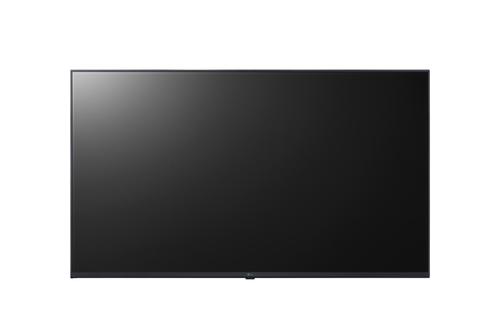

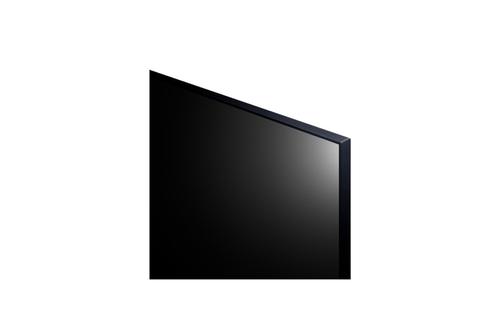

LG Signage Display UL3J Series 43" UHD
You have to log in to shop/see prices.
|
|
LG Signage Display UL3J Series 43" UHD
-
Size
43"
-
Resolution
3840 x 2160
-
HD
4K Ultra HD
-
USB-C
0
-
DVI
0
-
HDMI
3
-
Touchscreen
No
-
Speakers
Yes
-
Screen Shape
Flat
-
Height adjustment
No
-
Swivelling
No
-
Pivot
No
-
Usage
Digital signage
-
Sustainability
ErP
|
Description
Specifications
Related products
43UL3J-E
Features:
- Brightness(Typ.) : 300 nits
- Resolution : ULTRA HD (3,840 x 2,160)
- webOS-based High Performance
- Built-in Speaker
- Compatible with LG's One:Quick Share
- Compatible with AV Control Systems
Specifications:
-
Panel
Panel spec
| Screen Size |
43” |
| Panel Technology |
IPS |
| Native Resolution |
3,840 × 2,160 (UHD) |
| Brightness (Typ.) |
300 nit |
| Contrast Ratio |
1,300:1 |
| Dynamic CR |
1,000,000 : 1 |
| Color gamut |
DCI 80 % |
| Viewing Angle (H x V) |
178 × 178 |
| Color Depth |
10-bit(D), 1.07Billon colors |
| Response Time |
8ms (G to G) |
| Surface Treatment |
3% |
| Operation Hours (Hours / Day) |
16 / 7 |
| Portrait / Landscape |
Yes / Yes |
-
Connectivity
Connectivity spec
| Input |
HDMI (3, HDCP 2.2 / 1.4), USB 2.0 Type A (2) |
| Output |
Audio |
| External Control |
RS232C In / Out (4 Pin Phone Jack), RJ45 (LAN) In |
-
Mechanical Specification
Mechanical Specification spec
| Bezel Color |
Ashed Blue |
| Bezel Width |
Off : 6.9/6.9/6.9/18.4
On : 12.8/12.8/12.8/19.9 |
| Weight (Head) |
8.8 kg |
| Monitor Dimension (W × H × D) |
967 x 564 x 57.1 mm |
| Carton Dimensions (W × H × D) |
1,055 x 660 x 142 mm (Box outer size) |
| Handle |
No |
| VESA™ Standard Mount Interface |
200 × 200 mm |
-
Environment Conditions
Environment Conditions spec
| Operation Temperature |
0 °C to 40 °C (Portrait Scene : 0 °C to 35 °C) |
| Operation Humidity |
10 % to 80 % |
-
Power
Power spec
| Power Supply |
AC 100-240V~, 50/60Hz |
| Power Type |
Built-In Power |
-
Power Consumption
Power Consumption spec
| Typ./Max. |
80W / 120W |
| BTU (British Thermal Unit) |
273 BTU/Hr(Typ.), 409 BTU/Hr(Max.) |
-
Certification
Certification spec
| Safety |
CB / NRTL |
| EMC |
FCC Class "A" / CE |
| ErP |
Yes (NewErP) |
-
Software Compatibility
Software Compatibility spec
| SuperSign CMS |
Yes |
| SuperSign Control / Control+ |
Yes |
| SuperSign WB |
Yes |
| SuperSign Media Editor |
Yes |
| LG ConnectedCare |
Yes |
| Promota |
Yes (Not available for EU/CIS) |
-
-
Accessory
Accessory spec
| Basic |
Remote Controller(include battery 2ea), Power Cord, Regulation Book, Phone to D-Sub9 Gender, Cable Holder |
| Skjermdiagonal | 109,2 cm (43") |
| Skjermteknologi | IPS |
| LED-baklystype | Direct-LED |
| Skjermoppløsning | 3840 x 2160 piksler |
| Lysstyrke for skjerm | 300 cd/m² |
| HD-type | 4K Ultra HD |
| Naturlig sideforhold | 16:9 |
| Oppdateringsresponstid | 8 ms |
| Kontrastforhold | 1300:1 |
| Kontrastforhold (dynamisk) | 1000000:1 |
| Synsvinkel, horisontal | 178° |
| Synsvinkel, vertikal | 178° |
| Display antall farger | 1,07 milliarder farger |
| Anslått levetid | 30000 timer |
| Oppdateringsfrekvens | 60 Hz |
| Tåkenivå | 3% |
| Antall HDMI-porter | 3 |
| HDMI-versjon | 2.2/1.4 |
| Antall HDMI-inngangsporter | 3 |
| USB-port | Yes |
| Antall USB-porter | 2 |
| USB-versjon | 2.0 |
| Ethernet/bredbåndsforbindelse | Yes |
| Antall ethernets-/bredbåndstilkoblinger (RJ-45) | 1 |
| Wi-Fi | Yes |
| RS-232-tilkobling | Yes |
| RS-232C | Yes |
| Innebygde høyttalere | Yes |
| Produktdesign | Digital skiltingstavle (flatskjerm) |
| Produktfarge | Blå |
| Støttede plasseringer/plasseringer som kan benyttes | Innendørs |
| Orientering | Horisontal/vertikal |
| VESA-montering | Yes |
| Panelmonterbart grensesnitt | 200 x 200 mm |
| Formål | Kommersiell |
| Driftstimer (timer / dager) | 16/7 |
| Strømforbruk (vanlig bruk) | 80 W |
| Strømforbruk (standby) | 0,5 W |
| Energieffektivitetsklasse (SDR) | G |
| Energiforbruk (SDR) per 1000 timer | 71 kWh |
| AC-inngangsspenning | 100 - 240 V |
| AC-inngangsfrekvens | 50 - 60 Hz |
| Varmespredning | 273 BTU/t |
| Energieffektivitetsskala | A til G |
| Internminne | 8 GB |
| Operativsystemprogramvare 04 | WebOS |
| Bredde | 967 mm |
| Dybde | 57,1 mm |
| Høyde | 564 mm |
| Vekt | 8,8 kg |
| Pakkebredde | 1055 mm |
| Pakkedybde | 142 mm |
| Pakkehøyde | 660 mm |
| Pakkevekt | 10,9 kg |
| Fjernkontroll medfølger | Yes |
| Kabler inkludert | AC |
| Driftstemperatur (T-T) | 0 - 40 °C |
| Relativ luftfuktighet under drift (H-H) | 10 - 80% |
| Harmonisert system (HS)-kode | 85285210 |
| Varmedissipasjon (maks.) | 409 BTU/t |
| Bærekraftsertifikater | ErP |
