IBM EXS N2215 SAS SATA HBA for
You have to log in to shop/see prices.
|
|
IBM EXS N2215 SAS SATA HBA for
-
Output Interface
SAS, SATA
-
External Ports
No
-
Host Interface
PCI-E
-
Internal Ports
Yes
-
RAID
No
|
Description
Specifications

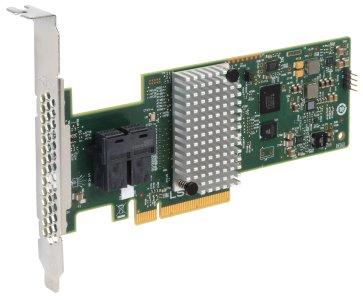

The N2215 SAS/SATA HBA for IBM® System x® is an ideal solution for System x servers that require high-speed internal storage connectivity. This eight-port host bus adapter supports direct attachment to SAS and SATA internal HDDs and SSDs. With a low-profile form-factor design, the N2215 SAS/SATA HBA offers two x4 internal mini-SAS HD connectors.
| Vertsgrensesnitt | PlayStation Network |
| Utgangsgrensesnitt | SAS,SATA |
| Expansion card form factor | Lavprofil |
| Intern | Yes |
| Formål | Server |
| ISV-sertifiseringer | UL
cUL
IEC60950
EMC
FCC
TUV
CE
VCCI
BSMI
C-tick
KC |
| Dataoverføringsfrekvens (maks) | 12 Gbit/s |
| Fibre Channel-protokoller | SSP, SMP, STP, SATA |
| Driftstemperaturområde | 5 - 40 °C |
| Oppbevaringstemperaturomåde (Celsius) | -40 - 60 °C |
| Luftfuktighetsområde ved drift | 8 - 93% |
| Bredde | 69 mm |
| Dybde | 170 mm |
| Høyde | 17 mm |
| Vekt | 88 g |
| Pakkebredde | 143 mm |
| Pakkedybde | 238 mm |
| Pakkehøyde | 51 mm |
| Pakningsvekt | 310 g |
| Eksterne I/O-porter | 8 x SAS/SATA
2 x mini-SAS |
